TEUFELBERGER EVOLUTION TK16

EVOLUTION TK16 Rotation Resistant Rope (Part #: ETK16)

The EVOLUTION TK16 is a rotation resistant rope engineered for offshore cranes and subsea winches operating in challenging marine environments. This steel wire rope, available through Vancouver Rigging Supply Ltd. for Canadian distribution, combines longevity with flexibility to meet the demands of multilayer spooling applications.

Technical Specifications:

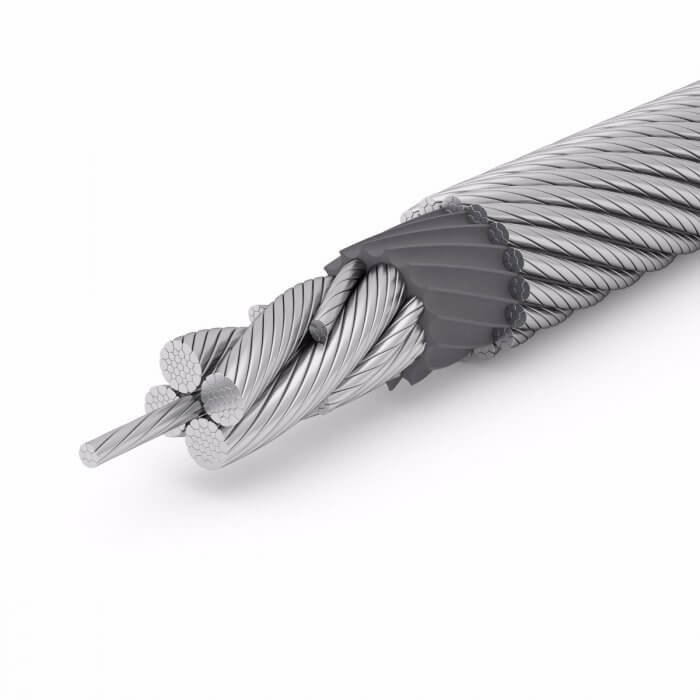

• Construction: 16 x K6-EPIWRC (K), RCN 23-1 (8 mm - 30 mm) | 16 x K7-EPIWRC (K), RCN 23-2 (32 mm - 42 mm)
• Diameter Range: 5/16" to 1 5/8" (8 mm to 42 mm)
• Lay Options: Ordinary or Lang's lay, right or left-handed

Key Features:

• PLASTFILL® Technology: Corrosion resistance and core lubrication
• SUPERFILL® Compaction: Wear optimization and dimensional stability
• Pro Active Core Lubrication: Designed for high temperatures and extreme lifting heights
• PROTECT Coating: Available upon request

Performance Characteristics:

• Corrosion Resistance: PLASTFILL® insert prevents dirt ingress and environmental damage
• Spooling Performance: Maintains dimensional stability under lateral pressure
• Breaking Force: High capacity for operational safety
• Torsional Stability: Balanced rope structure for improved handling

Industry Applications:

• Offshore Oil and Gas Platforms
• Marine Vessel Operations
• Subsea Equipment Handling
• Port and Harbor Cranes

Dimensional Data:

• 8 mm (5/16"): Weight - 0.34 kg/m (0.23 lbs/ft), Min. Breaking Force - 54 kN (12,140 lbs) at 1770 N/mm²
• 42 mm (1 5/8"): Weight - 8.97 kg/m (6.02 lbs/ft), Min. Breaking Force - 1,729 kN (388,695 lbs) at 2160 N/mm²

For complete technical specifications and to request a quote for the EVOLUTION TK16, click the 'Add to Quote' button on this page.
