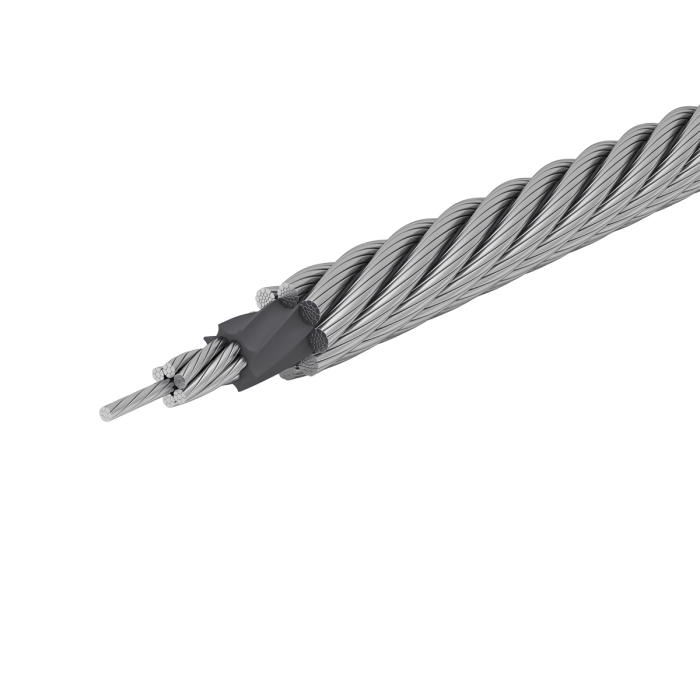

TEUFELBERGER EVOLUTION QS816V

The EVOLUTION QS816V steel wire rope, part number QS816V, offers exceptional resistance to external factors in building construction and civil engineering applications. This 8 x K26WS EPIWRC (K) rope, with RCN 09 classification, is available in both ordinary and Lang's lay configurations, right and left lay options.

Key features include:

  • Multilayer spooling capability
  • SUPERFILL® technology
  • PLASTFILL® core protection

The QS816V is engineered for use without a swivel and provides:

  • High durability with substantial minimum breaking forces
  • Extended service life due to wear-optimized design
  • Dimensional stability under lateral pressure for improved spooling
  • Reduced wear from SUPERFILL® strand compaction

Available diameters range from 10 mm (3/8"") to 42 mm (1 5/8""), with corresponding minimum breaking forces from 81 kN to 1736 kN, depending on the strength grade. Weight per meter varies from 0.46 kg/m (0.31 lbs/ft) to 8.60 kg/m (5.77 lbs/ft).

The QS816V finds applications in:

  • Building construction
  • Civil engineering projects
  • Scraper installations

This product is designed to meet the needs of Canadian companies operating in construction, engineering, and industrial sectors. For detailed specifications and to request a quote, please click the 'Add to Quote' button on this page.

Size (inches): 10MM - 42MM
Weight (lbs): -

Working Load Limit (t): -
