PRODUCT CODE: - | PART NUMBER: -

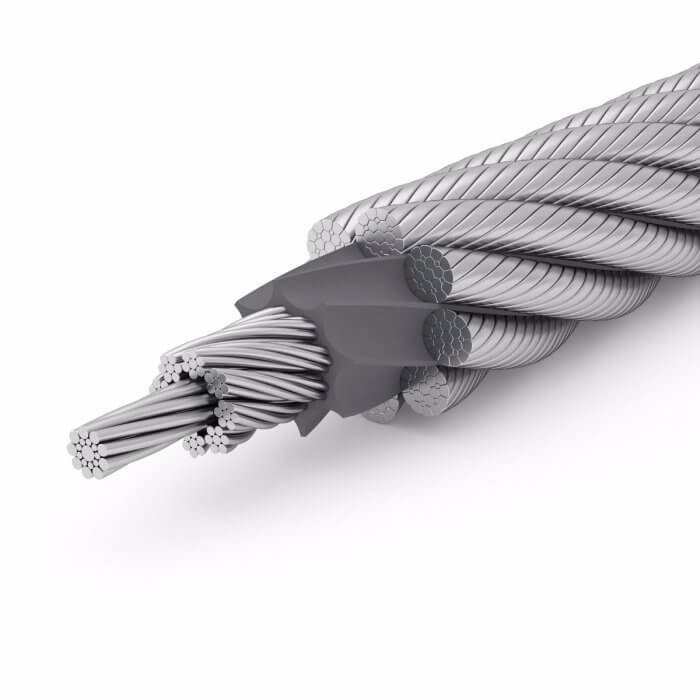

TEUFELBERGER EVOLUTION Q8
The EVOLUTION Q8 steel wire rope, part number Q8, is engineered for crowd rope applications in rotary drilling rigs across Canada. This 8 x K25F-EPIWRC rope, with RCN 06 classification, operates without a swivel in ordinary lay, right or left configurations.
Technical specifications:
- SUPERFILL® technology for strand compaction
- PLASTFILL® core protection
- Diameter range: 12 mm (1/2"") to 54 mm (2 1/8"")
- Weight: 0.64 kg/m (0.43 lbs/ft) to 13.41 kg/m (9 lbs/ft)
- Minimum breaking force: 110 kN to 2469 kN
The Q8 rope addresses common challenges in drilling operations:
- Withstands shock loads and constant vibrations
- Resists dirt accumulation
- Functions with small deflection sheaves
Performance characteristics:
- Maintains flexibility at low d/D ratios
- Exhibits flexural fatigue resistance
- Endures numerous bending cycles
The EVOLUTION Q8 serves industries such as:
- Oil and gas exploration
- Geothermal drilling
- Construction foundation work
Canadian companies requiring a durable crowd rope for rotary drilling equipment can evaluate the EVOLUTION Q8's specifications. To obtain a quote, use the 'Add to Quote' button on this page.
Size (inches): 12MM - 54MM
Weight (lbs): -
Working Load Limit (t): -
