TEUFELBERGER EVOLUTION P9

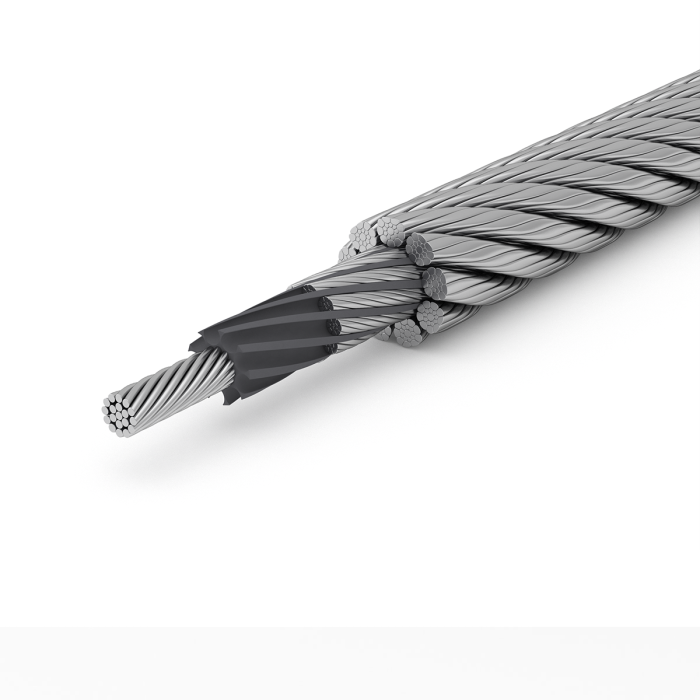

The EVOLUTION P9 steel wire rope, part number P9, functions as a boom hoist rope for mobile and crawler cranes operating in Canadian construction and industrial environments. This K9xK19S-PWRC(K) rope, with RCN 05 classification, is designed for use without a swivel in ordinary lay, right or left configurations.

Technical specifications:

• Multilayer spooling capability
• SUPERFILL® technology
• PLASTFILL® core protection
• DUOFILL® compaction process
• Diameter range: 16 mm (5/8"") to 32 mm (1 1/4"")
• Weight: 1.45 kg/m (0.97 lbs/ft) to 5.09 kg/m (3.42 lbs/ft)
• Minimum breaking force: 268 kN to 1135 kN

The P9 rope addresses specific engineering requirements:

• Resists crushing and deformation under load
• Maintains dimensional stability
• Withstands multilayer spooling stress

Performance characteristics:

• 9-strand double parallel lay design
• Close diameter tolerances
• Reduced wear in multilayer configurations

The EVOLUTION P9 serves industries such as:

• Construction
• Infrastructure development
• Port operations
• Mining

Canadian companies operating cranes with long booms or luffing jibs can evaluate the EVOLUTION P9's specifications. To obtain a quote, use the 'Add to Quote' button on this page.
