PRODUCT CODE: P-6636 | PART NUMBER: PK040EHS

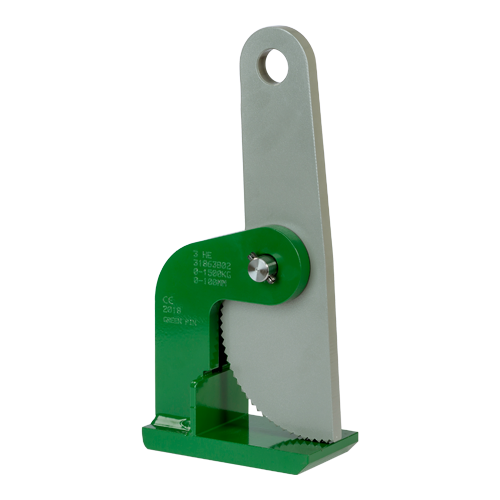

GREEN PIN BIGMOUTH LIFTING CLAMP H-TYPE 0-100 (PK040EHS)

The Green Pin BigMouth® Lifting Clamp H-type (PK040EHS) offers a solution for horizontal plate transportation in Canadian industrial operations. This 4" H-type clamp, distributed by Vancouver Rigging Supply Ltd., features a working load limit of 4" per set and accommodates materials up to 3 15/16" (100 mm) thick.

Key Specifications:

  • Width opening: 0 - 3 15/16" (0 - 100 mm)
  • Thickness: 25/32" (20 mm)
  • Eye diameter: 1 3/16" (30 mm)
  • Overall length: 16 5/16" (414 mm)
  • Net weight: 33.1 lbs (15 kg)

The Green Pin BigMouth® design allows for connections to wider-than-standard points, benefiting industries such as shipbuilding, steel fabrication, and heavy machinery manufacturing. Its compact structure and 33.1 lbs weight contribute to ease of handling in various work environments.

Application Guidelines:

  • Mandatory paired use for balanced load distribution
  • Horizontal lifting operations only
  • Compatible with plate thicknesses up to 3 15/16" (100 mm)

This H-type lifting clamp adheres to industry standards and undergoes rigorous testing to meet Canadian safety regulations. Its durable coating supports longevity in challenging industrial conditions, from coastal shipyards to inland manufacturing facilities.

For procurement inquiries or to include the Green Pin BigMouth® Lifting Clamp H-type in your rigging inventory, click the 'Add to Quote' button to initiate the quotation process with Vancouver Rigging Supply Ltd.

Size (inches): 0-100
Weight (lbs): 22.9

Working Load Limit (t): 4.0
