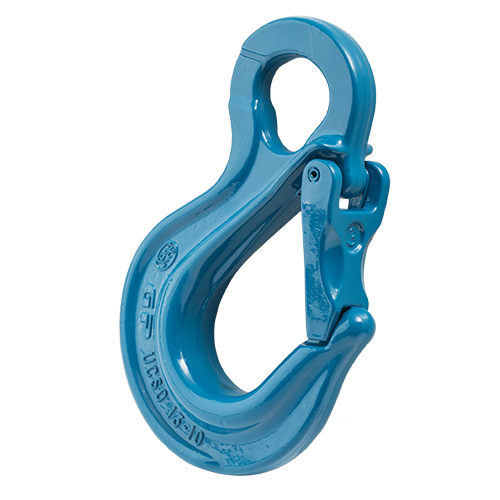

GRADE 100 EYE SLING HOOK 7/32" (GPUCSO6)

The Green Pin^® Sling Hook E, part number GPUCSO6, is a grade 10 eye sling hook designed for general lifting applications in various industries, including construction, manufacturing, and oil and gas. This hook features an easy operating latch that ensures full safety and can be quickly connected to load lifting points.

The product has a working load limit of 1.4 t and is compatible with 7/32" chain diameter. The hook's eye can be connected to grade 10 chain with a connecting link or an omega link, to a webbing with a web sling connector, or to a wire rope with a thimble. The flat on the eye enables assembly with an omega link or on a thimble.

The hook's dimensions are as follows:

• Length: 3 5/16" (82 mm)
• Diameter eye inside: 29/32" (23 mm)
• C-opening hook: 1 1/32" (26 mm)
• Thickness: 19/32" (15 mm)
• Width: 3/4" (19 mm)
• Diameter eye outside: 1 11/16" (43 mm)
• Width outside: 2 27/32" (73 mm)
• Length: 4 1/2" (114 mm)
• Width: 13/32" (10 mm)
• Thickness: 1/4" (6 mm)

It is made from alloy steel, grade 10, quenched and tempered, and has a safety factor of MBL equals 4 x WLL. The hook is painted blue and has a net weight of 0.63 lbs (0.29 kg).

The Green Pin^® Sling Hook E meets the following certifications:

• 2.1
• 2.2
• 3.1
• MTCa

To request a quote for the Green Pin^® Sling Hook E, part number GPUCSO6, click the Add to Quote button.
