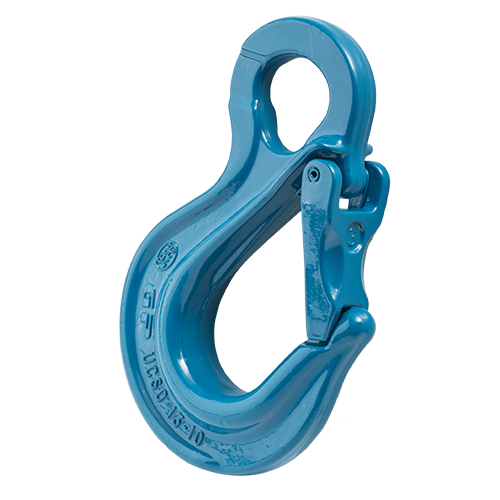

GRADE 100 EYE SLING HOOK 3/4" (GPUCSO20)

The Green Pin^® Sling Hook E, part number GPUCSO20, is a grade 10 eye sling hook designed for general lifting applications in various industries, including construction, manufacturing, and oil and gas.

This hook features an easy operating latch that ensures full safety and can be quickly connected to the load lifting points. The forged latch guarantees a longer lifespan and strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin.

The eye of the hook can be connected to grade 10 chain with a connecting link or an omega link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble.

Product Specifications:

• Working Load Limit: 16 t
• Chain Diameter: 3/4" (19 mm)
• Length: 9 11/32" (237 mm)
• Diameter Eye Inside: 2 13/32" (60 mm)
• C Opening Hook: 2 13/32" (60 mm)
• Thickness: 1 15/16" (49 mm)
• Width: 2 13/32" (60 mm)
• Diameter Eye Outside: 4 17/32" (114 mm)
• Width Outside: 8 3/16" (208 mm)
• Length: 12 27/32" (327 mm)
• Width: 1 3/32" (29 mm)
• Thickness: 13/16" (21 mm)
• Net Weight: 15.6 lbs (7.1 kg)

Certifications:

• 2.1
• 2.2
• 3.1
• MTCa
• MPIb
• DGUV

It is available for Canadian distribution through Vancouver Rigging Supply Ltd. To request a quote, please click the Add to Quote button.
