PRODUCT CODE: UCSO | PART NUMBER: GPUCSO13

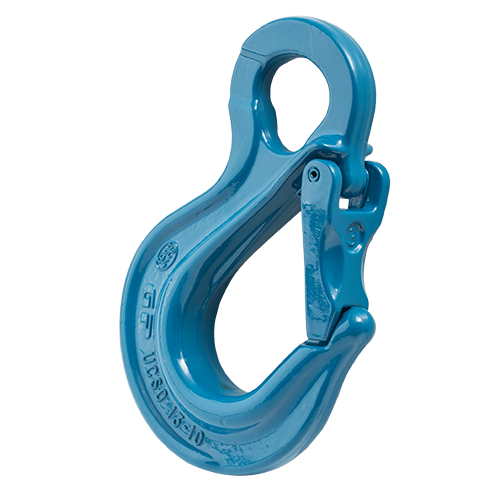

GRADE 100 EYE SLING HOOK 1/2" (GPUCSO13)
The Green Pin® Sling Hook E, part number GPUCSO13, is a grade 10 eye sling hook designed for general lifting applications in various industries, including construction, manufacturing, and oil and gas. This hook features an easy operating latch that ensures full safety and can be quickly connected to load lifting points.
The product has a working load limit of 6.8 t and is compatible with 1/2" (12.7 mm) grade 10 chain. The hook's eye can be connected to the chain using a connecting link or an omega link, or to a webbing with a web sling connector, or to a wire rope with a thimble. The flat on the eye enables assembly with an omega link or on a thimble.
The hook's dimensions are as follows:
- Length: 5 31/32" (148.4 mm)
- Diameter eye inside: 1 5/8" (41.3 mm)
- C-opening hook: 1 15/32" (38.1 mm)
- Thickness: 1 1/4" (31.8 mm)
- Width: 1 17/32" (41.4 mm)
- Diameter eye outside: 3 1/32" (76.2 mm)
- Width outside: 5 1/4" (133.4 mm)
- Length: 8 7/32" (213.4 mm)
- Width: 23/32" (18.3 mm)
- Thickness: 15/32" (11.9 mm)
- Net weight: 4.28 lbs (1.94 kg)
The product is made from alloy steel, grade 10, quenched and tempered, and has a safety factor of MBL equals 4 x WLL. The hook is painted blue and has the following certifications: 2.1, 2.2, 3.1, MTCa, MPIb, and DGUV.
This product is available for request quote by clicking on the Add to Quote button.
Size (inches): 1/2"
Weight (lbs): 4.28
Working Load Limit (t): 6.8
